[고전 2005.05.09] AMD 듀얼코어 애슬론 64 X2 강력한 공격

tware 2005. 12. 17. 04:00







































Processor  Model  Clock  Cache  Process  Core

(프로세서,  모델 ,  클럭,  캐시,  공정,  코어 네임)
Athlon 64 X2  4800+  2.4 GHz  2x 1 MB  90 nm  Toledo
Athlon 64 X2  4600+  2.4 GHz  2x 512 kB  90 nm  Manchester
Athlon 64 X2  4400+  2.2 GHz  2x 1 MB  90 nm  Toledo
Athlon 64 X2  4200+  2.2 GHz  2x 512 kB  90 nm  Manchester
Athlon 64  FX 55  2.6 GHz  1 MB  130 nm  Clawhammer
Athlon 64  4000+  2.4 GHz  1 MB  90 nm  San Diego
Athlon 64  4000+  2.4 GHz  1 MB  130 nm  Clawhammer
Athlon 64  3800+  2.4 GHz  512 kB  90 nm  Venice
Athlon 64  3800+  2.4 GHz  512 kB  130 nm  Newcastle
Athlon 64  3500+  2.2 GHz  512 kB  90 nm  Venice
Athlon 64  3500+  2.2 GHz  512 kB  90 nm  Winchester
Athlon 64  3500+  2.2 GHz  512 kB  130 nm  Newcastle
Athlon 64  3200+  2.0 GHz  512 kB  90 nm  Venice
Athlon 64  3200+  2.0 GHz  512 kB  90 nm  Winchester
Athlon 64  3000+  1.8 GHz  512 kB  90 nm  Venice
Athlon 64  3000+  1.8 GHz  512 kB  90 nm  Winchester



http://www.tomshardware.com/reviews/amd,1030.html











Processor
Single Core CPUs  AMD Athlon 64 4000+ (2.4 GHz, 1 MB L2 Cache)

Intel Pentium 4 Processor 660 (3.6 GHz, 2 MB L2 Cache)

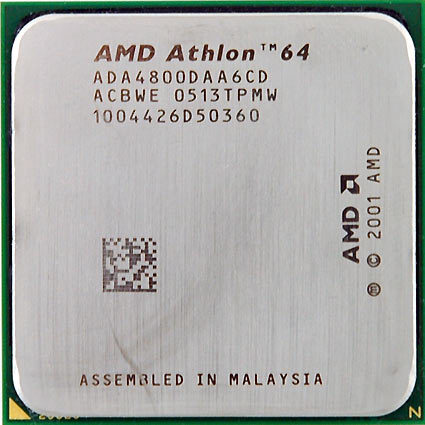

Dual Core CPUs  AMD Athlon 64 X2 4800+ (2.4 GHz, 2x 1 MB L2 Cache)

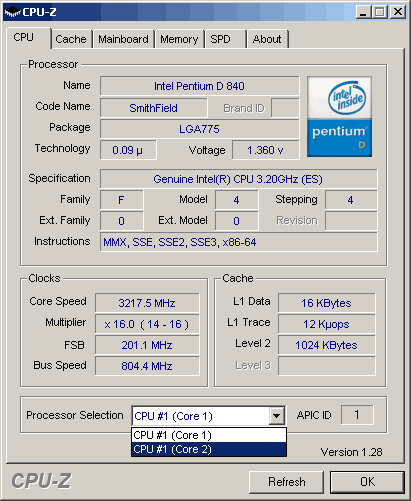

Intel Pentium D Processor 840 (3.2 GHz, 2x 1 MB L2 Cache)

Memory
AMD Platform (DDR400)  2x 512 MB - DDR400 (200 MHz)
Corsair Pro Series CMX512-3200XL (XMS3208 V1.1)
(CL2.0-2-2-5-1T @ 200 MHz)

Intel Platform (DDR2-667)  2x 512 MB - DDR2-667 (333 MHz)
Corsair CM2X512A-5400UL (XMS5400 V1.2)
(CL3-2-2-8-1T @ 333 MHz)

Motherboards
AMD Platform  Asus A8N-SLI Deluxe (Rev. 1.02, BIOS 1007)
NVIDIA nForce4 SLI Chipset

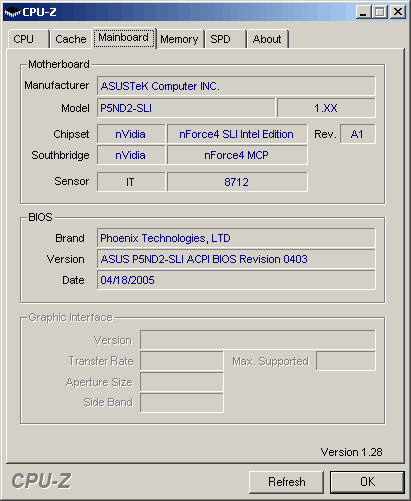

Intel Platform  Asus P5ND2-SLI (Rev. 1.02, BIOS 0601)
NVIDIA nForce4 Intel Edition SLI Chipset

System Hardware
Graphics Card (PCIe)  NVIDIA Geforce 6800 GT (Reference Board)
GPU : NVIDIA Geforce 6800 GT (350 MHz)
Memory : 256 MB DDR-SDRAM (500 MHz)
Hard Drive  Western Digital WD740 Raptor
74 GB, 8 MB Cache, 10000 rpm
Network  integrated NVIDIA GbE LAN
DVD-ROM  Gigabyte GO-D1600C (16x)
Power Supply  Tagan TG480-U01, ATX 2.0, 480 W

Software
Chipset Drivers  NVIDIA Forceware 6.53
Processor Driver  AMD CPU Driver 1.1.0.18
Graphics Driver  NVIDIA Forceware 71.84
DirectX  Version : 9.0c (4.09.0000.0904)
OS  Windows XP Professional 5.10.2600,
Service Pack 2





Benchmarks and Settings
OpenGL

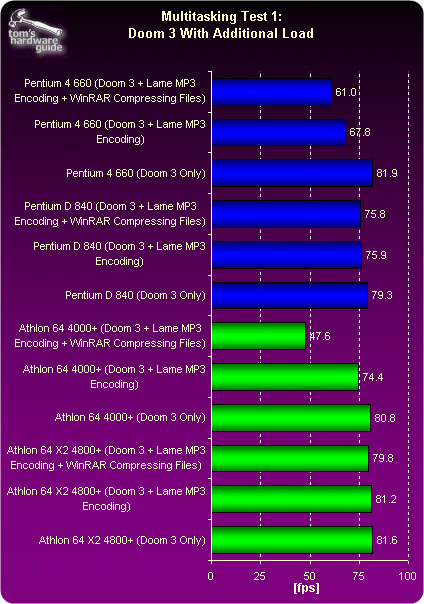

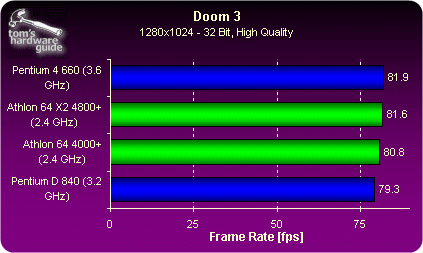

Doom III  Version : 1.0.1262
1280x1024, 32 Bit
Video Quality = High Quality
demo1
Graphics detail = High Quality

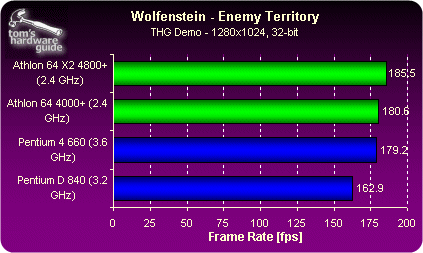

Wolfenstein
Enemy Territory  Version : 2.56 (Patch V 1.02)
1280x1024, 32 Bit
timedemo 1 / demo demo4
Geometric detail = high
Texture detail = high
DirectX 8

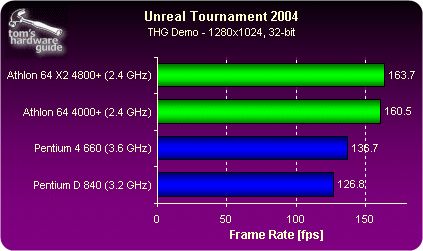

Unreal Tournament 2004  Version : 3204
1280x1024, 32 Bit, Audio = off
THG8-assault-single

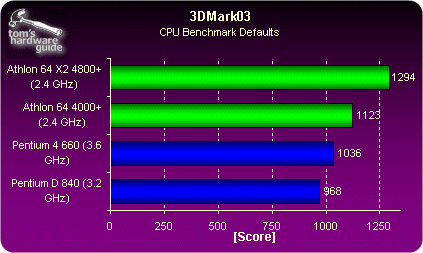

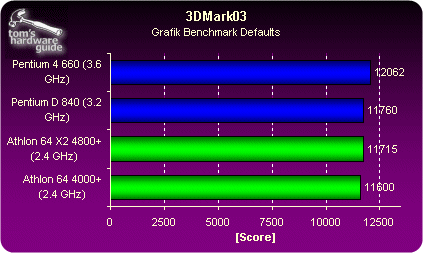

3DMark2003  Version 3.6.0
1024x786, 32 Bit
Graphics and CPU Default Benchmark
DirectX 9

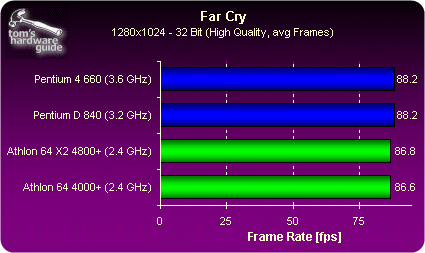

FarCry  Version 1.1 Build 1256
1280x1024 - 32 Bit
qualtity options = High

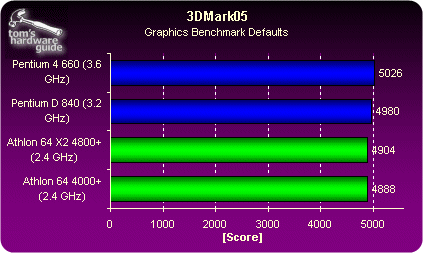

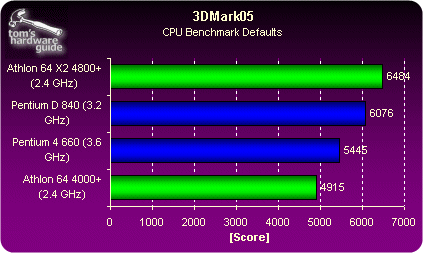

3DMark 2005  Version 1.0
1024x786, 32 Bit
Graphics and CPU Default Benchmark
Video

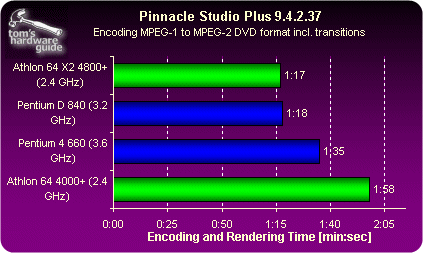

Pinnacle Studio 9 Plus  Version : 9.4.1
from : 352x288 MPEG-2 41 MB
to : 720x576 MPEG-2 95 MB
Encoding and Transition Rendering to MPEG-2/DVD
no Audio
Auto Gordian Knot

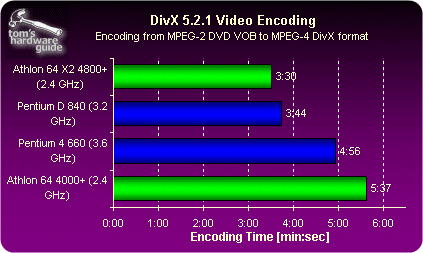

DivX 5.2.1

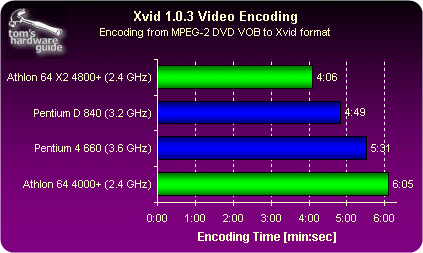

XviD 1.0.3  Version : 1.95
Audio = AC3 6ch
Custom size = 100 MB
Resulution settings = Fixed width
Codec = XviD and DivX 5
Audio = CBR MP3, kbps 192
182 MB VOB MPEG2-source

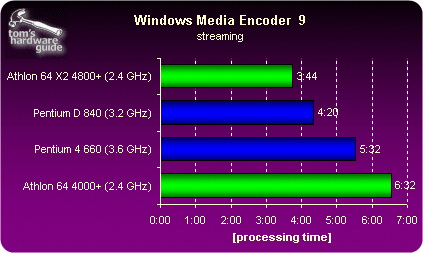

Windows Media Encoder  Version : 9.00.00.2980
720x480 DV to WMV
320x240 (29.97 fps)
282 kBps streaming
Audio

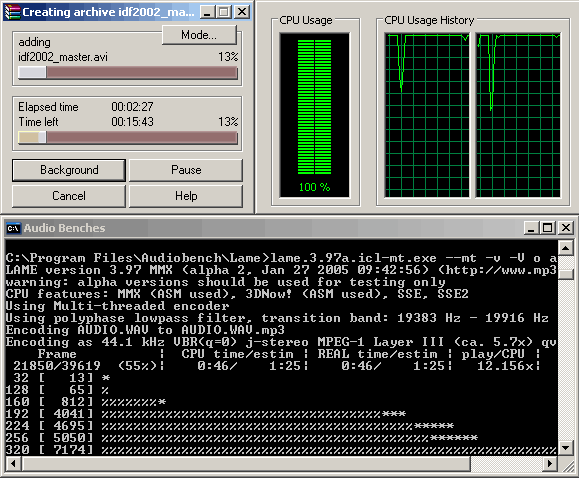

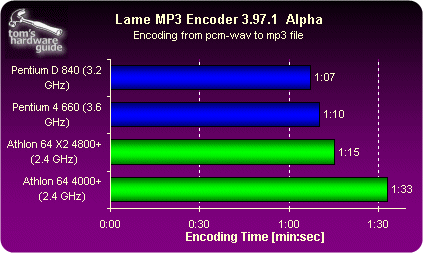

Lame MP3  Version 3.97.1 Multi-threaded Alpha
Wave 17:14 minutes (182 MB) to mp3
32 - 320 kbit
VBR = level 3
Applications

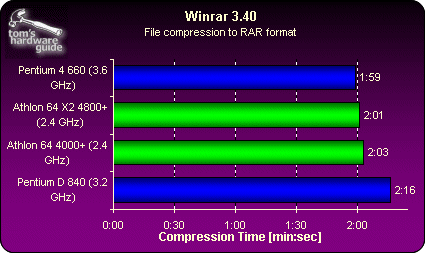

WinRAR  Version 3.40
283 MB, 246 Files
Compression = Best
Dictionary = 4096 kB

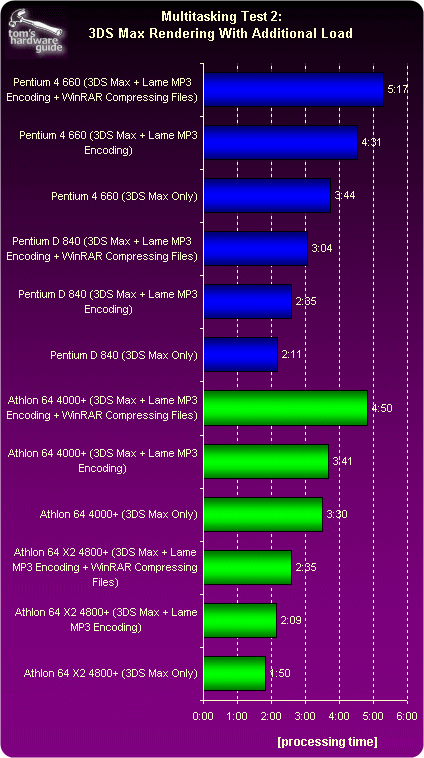

3DS Max 7  Characters "Dragon_Charater_rig"
1600x1200
Rendering Single
Synthetic

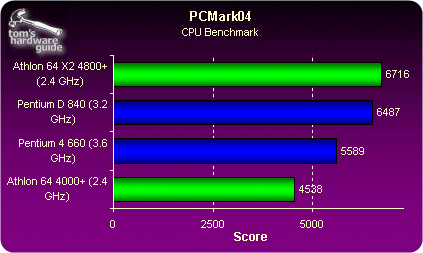

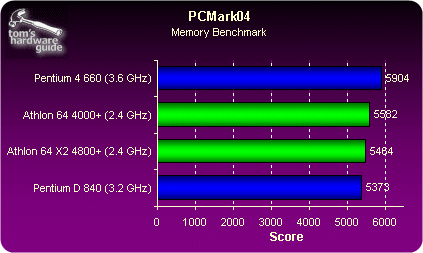

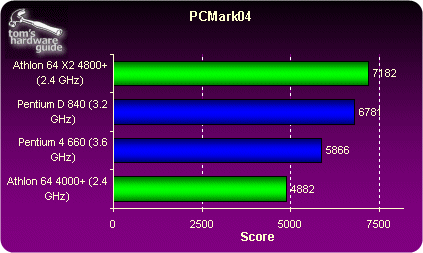

PCMark 2004 Pro  Version : 1.3.0
CPU and Memory Tests

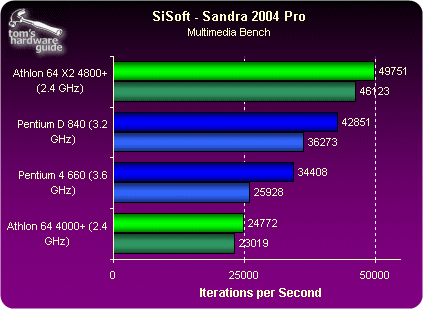

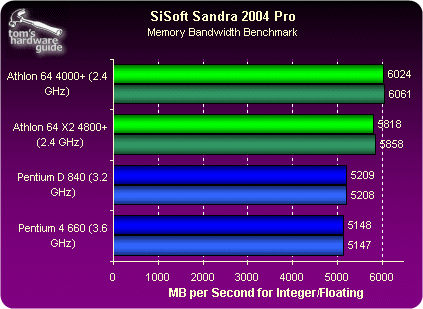

SiSoftware Sandra Pro  Version 2005, SR1
CPU Test = Multimedia Benchmark
Memory Test = Bandwidth Benchmark

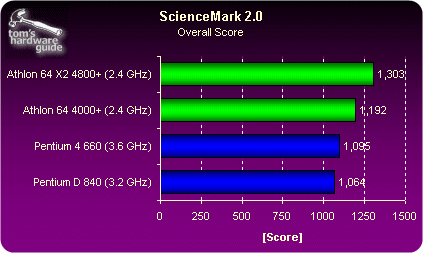

ScienceMark  Version 2.0
All Tests



















(Time이 적힌건 빨리 끝내는 거니까 짧을 수록 좋죠. 이하 타임 적힌건 다 짧은게 좋음

Score 점수, FPS 초당 프레임은 다 높은게 좋죠. xx per second 도 FPS 의 프레임 퍼 세컨드와 같은 초당 xxx 이라(처리능력) 높은게 좋죠.)

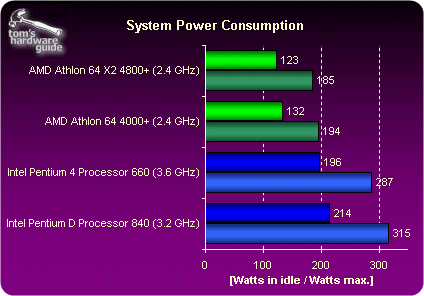

시스템 전력



2005년 5월 9일 기사
